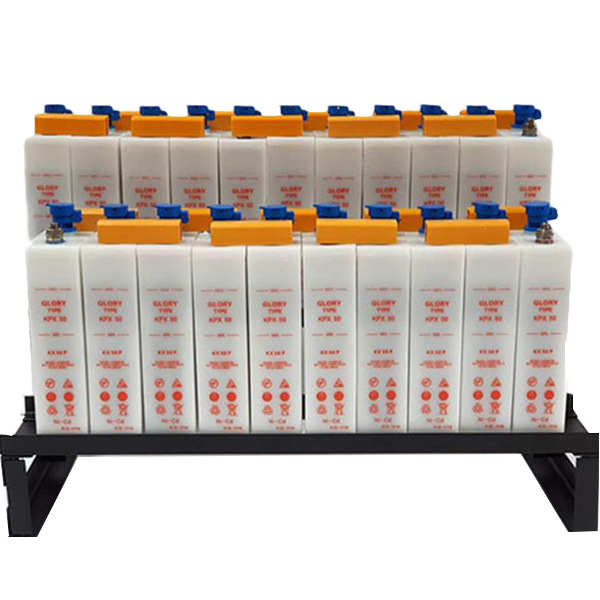

GLORY Nickel Cadmium Battery

GLORY High performance Nickel Cadmium Battery is designed for industrial high power application. The battery is suitable for a wide variety of harsh environment at wide temperature range, resistance to electrical and mechanical abuse.

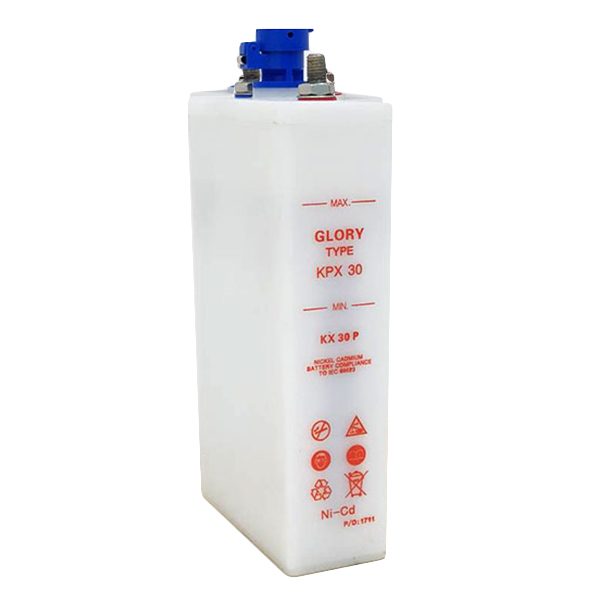

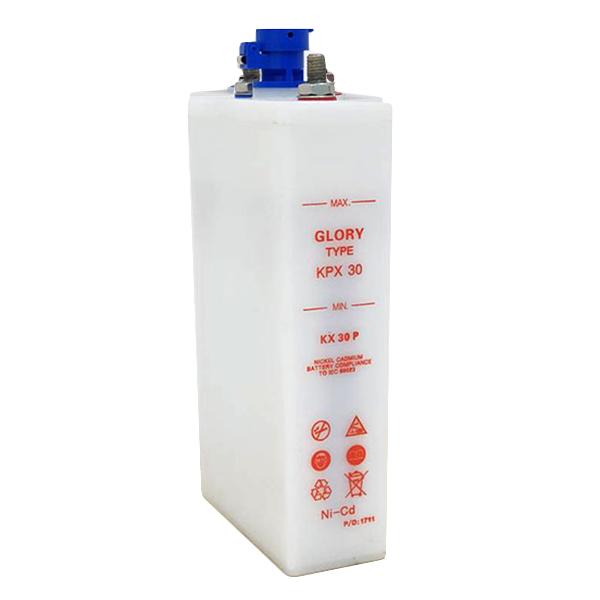

GLORY KPX Series Ultra High Discharge Rate is made of sintered plate. The battery is designed for all those applications where highest reliability and extreme high discharge current in very short period are required.

Precision applications where discharge period between 1 second to 30 minutes are required such as engine starting, gas turbine power generator and DC motor.

DOWNLOAD CATALOG

More Information

GLORY KPX series batteries cell full comply with the requirement of the IEC 60623 and tested by Intertek International, SIRIM QAS.

Application

  • Engine Starting
  • Gas Turbine Power Generator
  • DC Motor

CAPACITY RANGE
From 10AH to 210AH

Technical Data

Glory Nickel Cadmium Battery Specification

Brand ‘ GLORY ‘
Model KPX Series
Type Sintered Plate Nickel Cadmium
Standard compliance IEC 60623
Positive plate construction Nickel
Negative plate construction Cadmium
Nominal voltage per cell 1.2V
Float charge per cell 1.35 volt per cell
High rate (boost) per cell 1.40 volt per cell
Type of electrolyte Potassium Hydroxide
Specific gravity 1.20 +/- 0.01
Weight per cell Refer to product catalog
Dimension per cell Refer to product catalog
Rack configuration 2 steps, 1 tiers
Rack material Epoxy coated angle iron
Battery container Translucent polypropylene
Battery designed life 8-10 years, under float charged standby condition
Accessories Included
